Original Xbox Capacitor Replacement Kit – 1500µF & 3300µF
Restore your original Xbox motherboard with a 10-piece capacitor replacement kit: five 1500µF and five 3300µF 10V capacitors. Free US shipping.
Repair kit · Ships within 3 calendar days from California · Free USPS standard shipping within the US
Models and part matching
Match the original capacitor values, voltage requirements, polarity, lead spacing and clearance before installation. This kit supplies the listed capacitor values; it does not replace every capacitor on the motherboard.
Product details
Replace failed, bulging or leaking motherboard capacitors in an original Xbox with this 10-piece repair kit. It includes five 1500µF capacitors and five 3300µF 10V capacitors, covering two capacitor values used in original Xbox motherboard repairs.

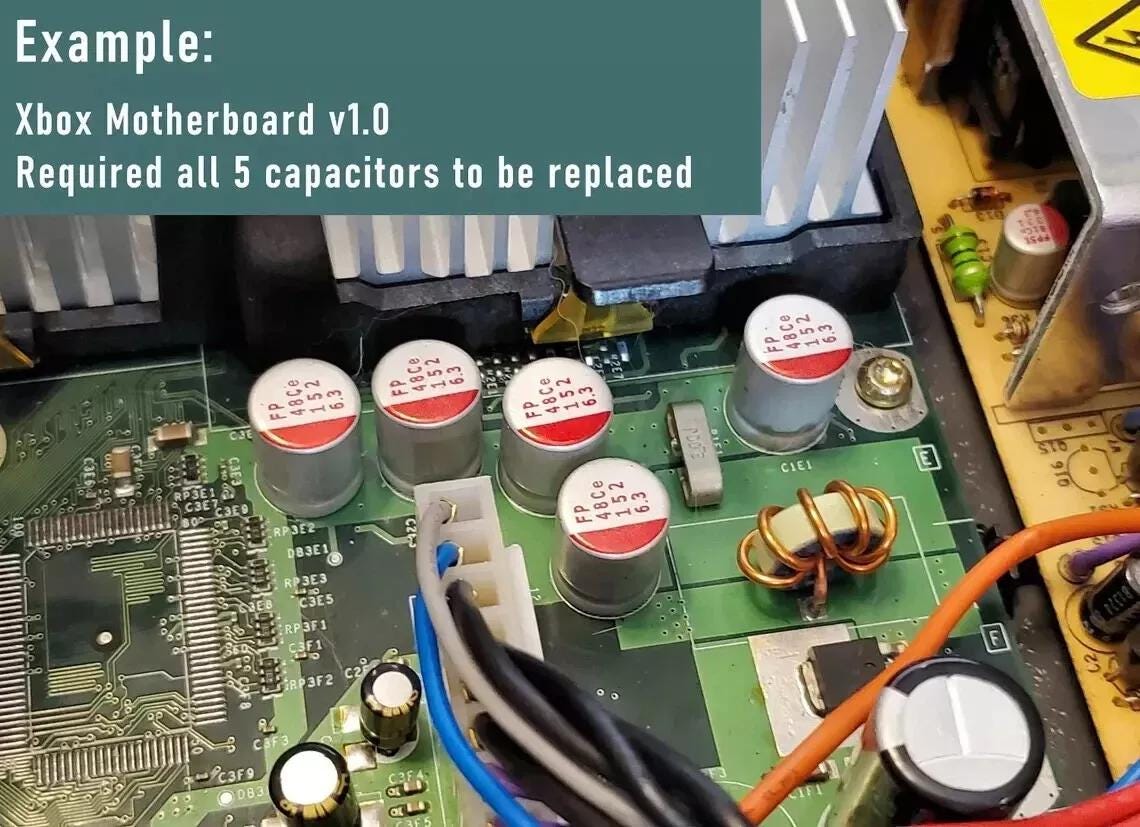

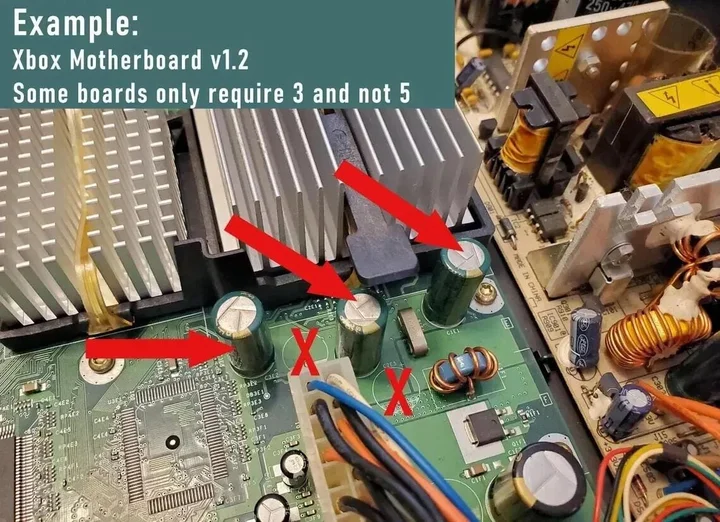

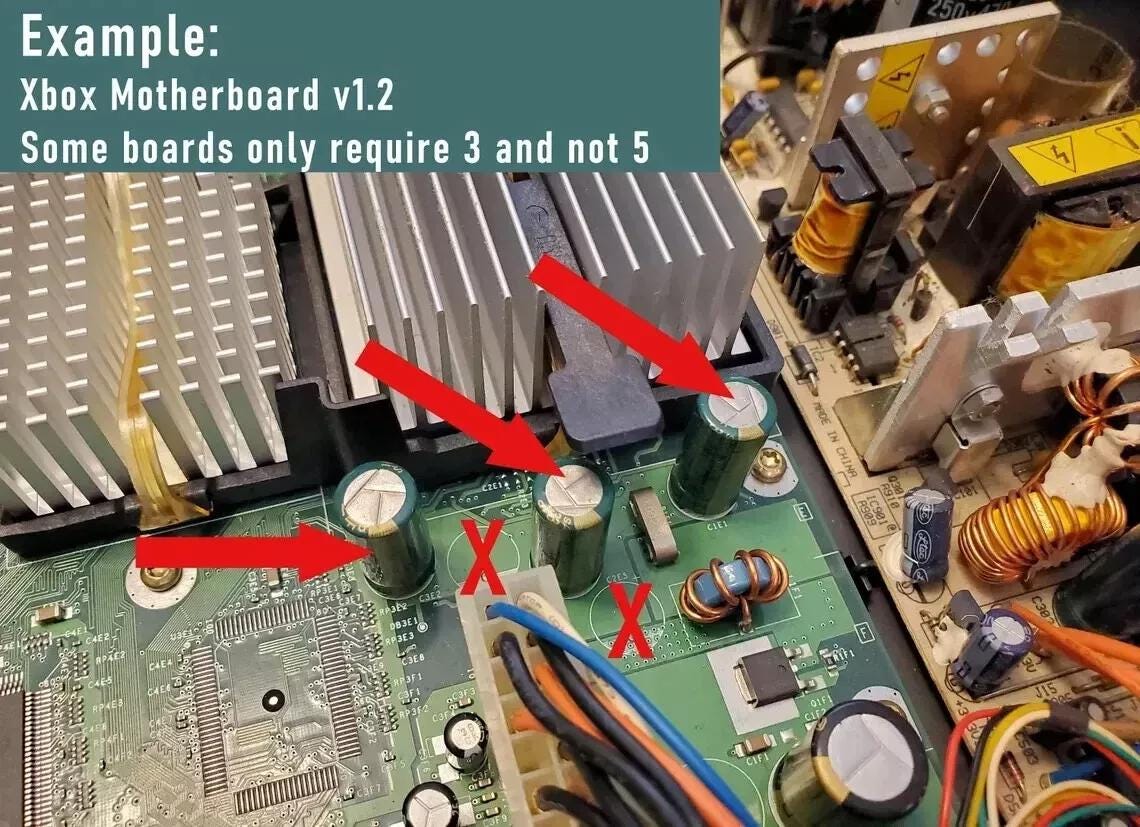

Select the capacitor values and positions that match your motherboard. The gallery shows example boards with three and five capacitor positions. The 3300µF parts are supplied with a 10V rating in place of 6.3V parts; their larger size can require the leads to be bent for horizontal mounting.
What is included

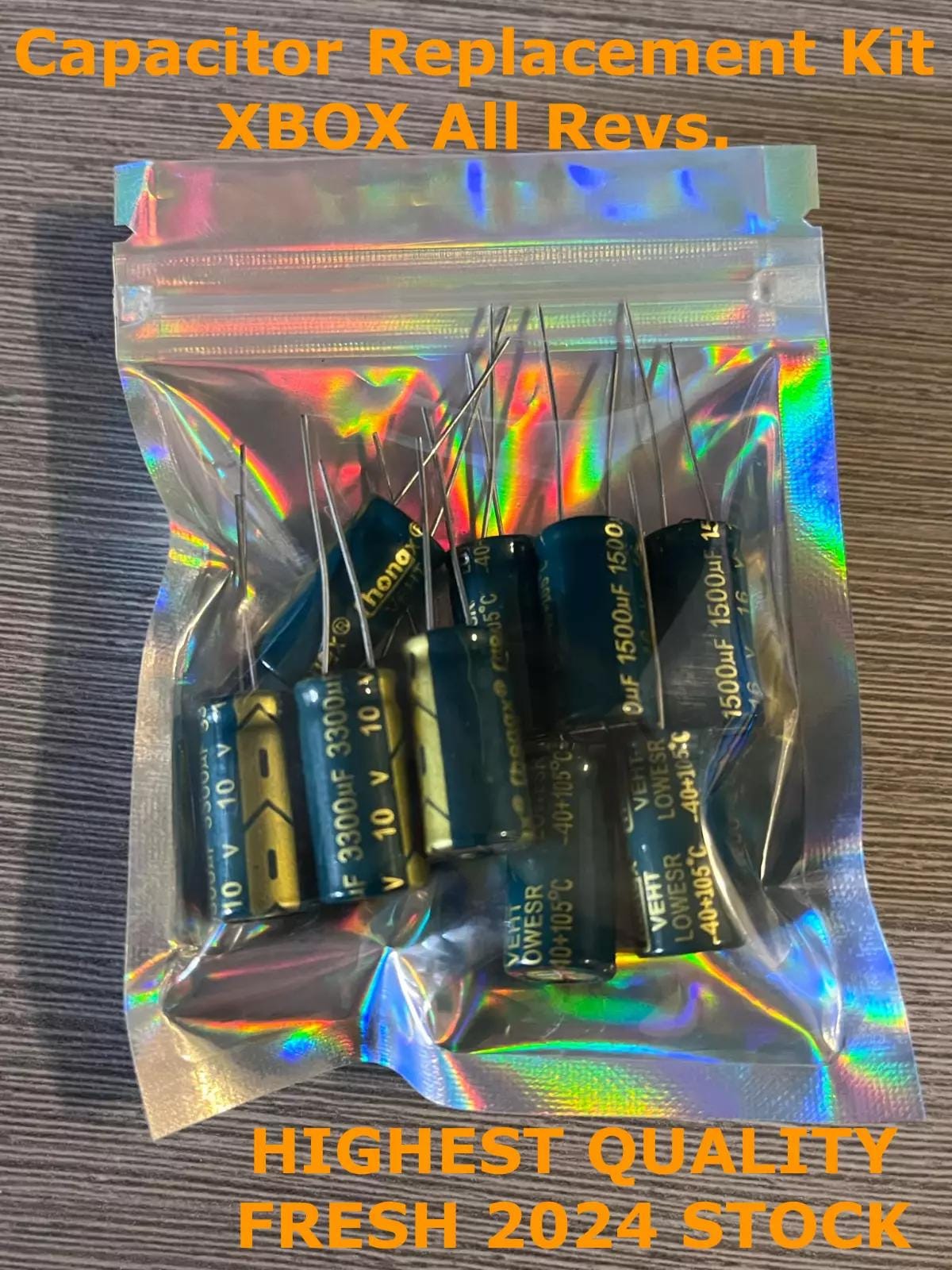

Five 1500µF capacitors and five 3300µF 10V capacitors. Motherboard, console, soldering tools and other components are not included.
Part details
Independent replacement part from Jams Engineering. Brand names identify equipment compatibility.
Material: Radial electrolytic capacitors
Part reference: JE-XBOX-CAPACITOR-KIT
Installation & compatibility
Soldering is required. Disconnect the console from power and use appropriate motherboard repair procedures. Preserve the board pads and install the correct capacitor value and polarity at each position.
Shipping & returns
US orders ship free by USPS standard shipping from California. Read shipping and return information.
