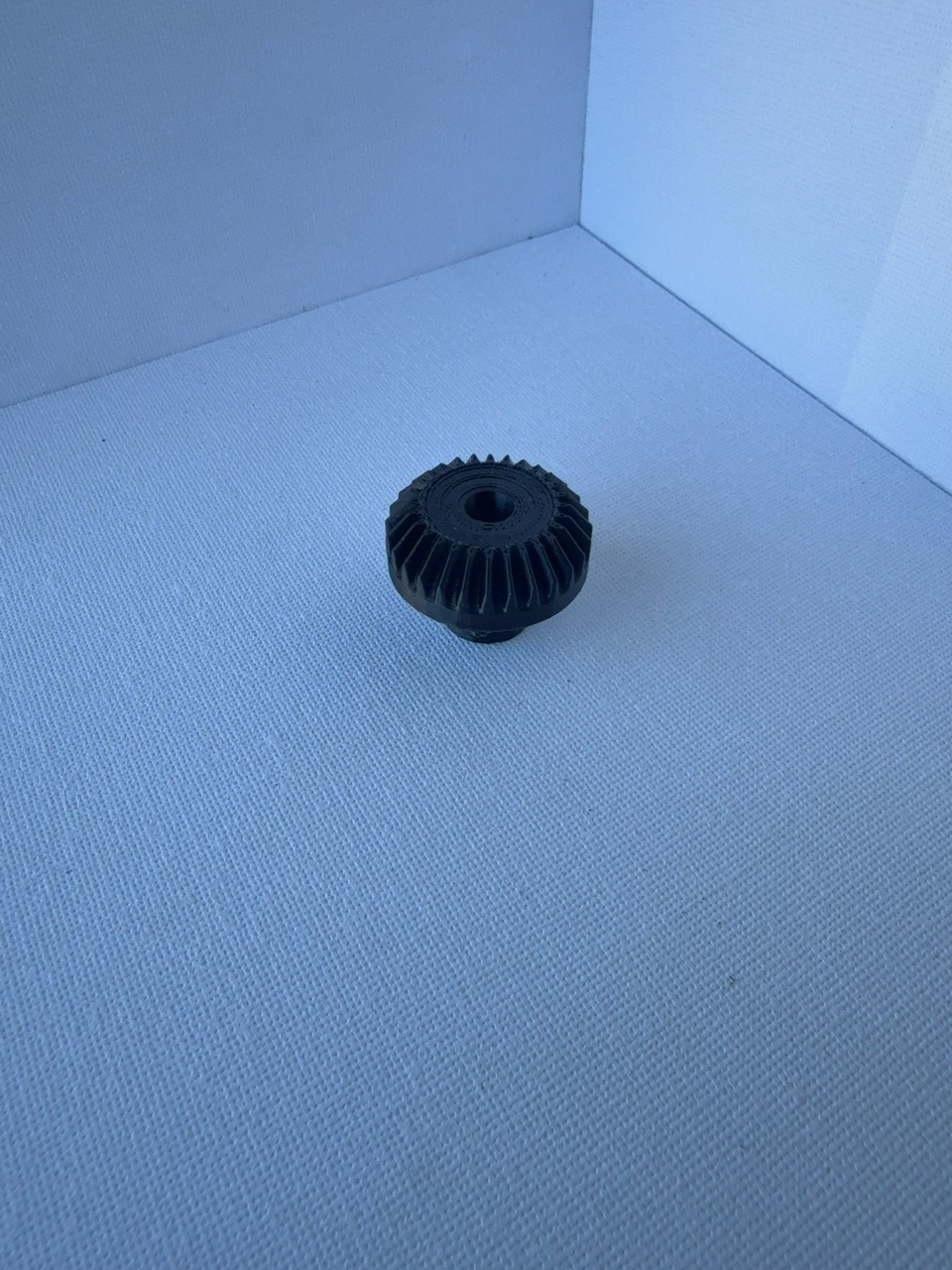

Bernina 500 600 Vertical Drive Gear — original owner main product photographView full image

Original, unedited photograph. Open the image to see it in full.

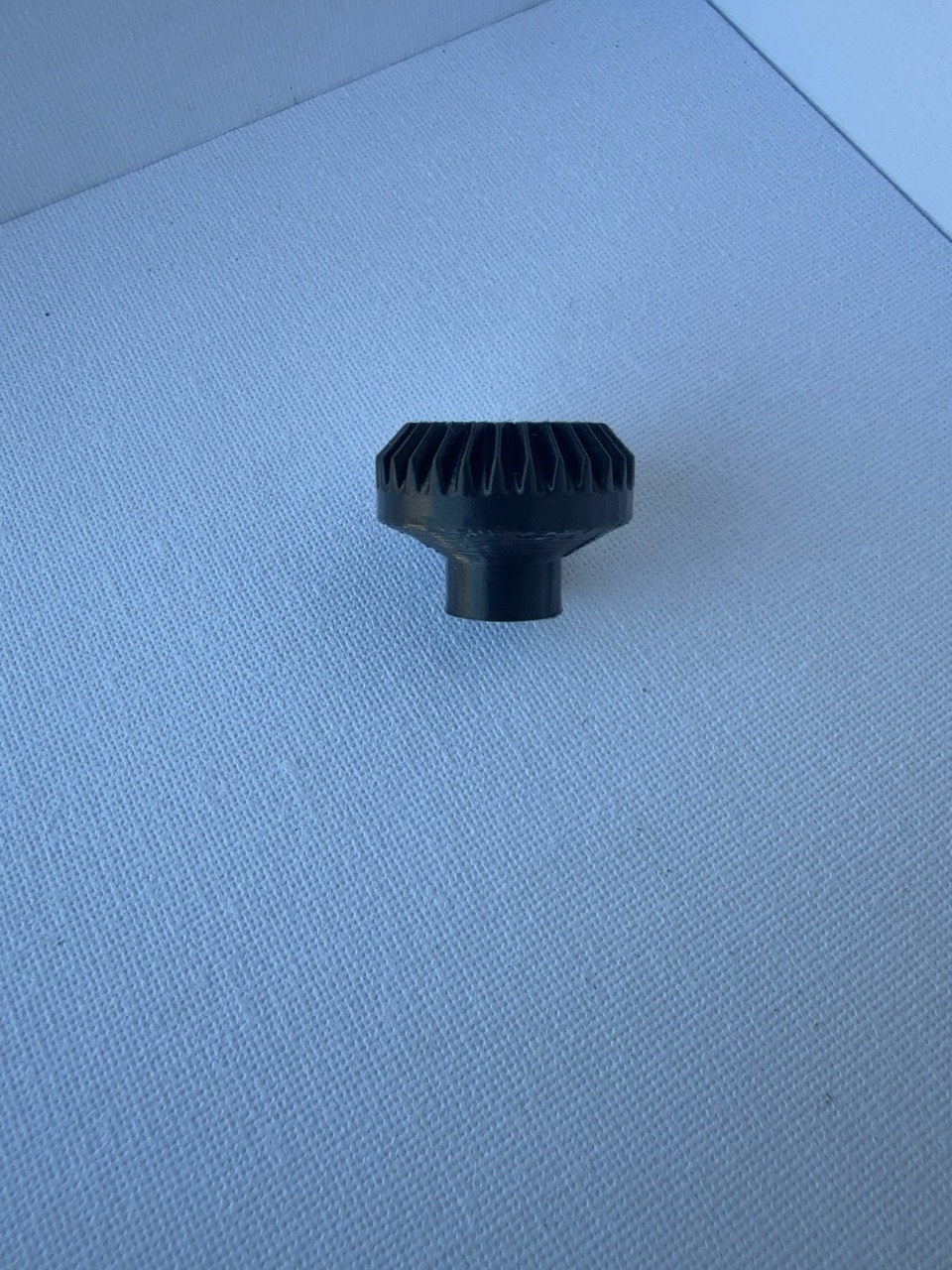

Bernina 500 600 Vertical Drive Gear — original owner main product photographBernina 500 600 Vertical Drive Gear — original side view showing the stemBernina 500 600 Vertical Drive Gear — original caliper photograph showing 29.5 mm
Original photograph
Bernina 500 600 Vertical Drive Gear — original owner main product photograph
1 / 3
Open original file
Sewing machine parts

Bernina 500 600 Vertical Drive Gear

Replacement vertical drive gear for vintage Bernina 500/600 sewing machines. Compare the bore, stem and original measurement photos. Free US shipping.

$39.99 USD

Made to order · Ships within 3 calendar days from California · Free USPS standard shipping within the US

Models and part matching

Bernina 500Bernina 600
Match your part

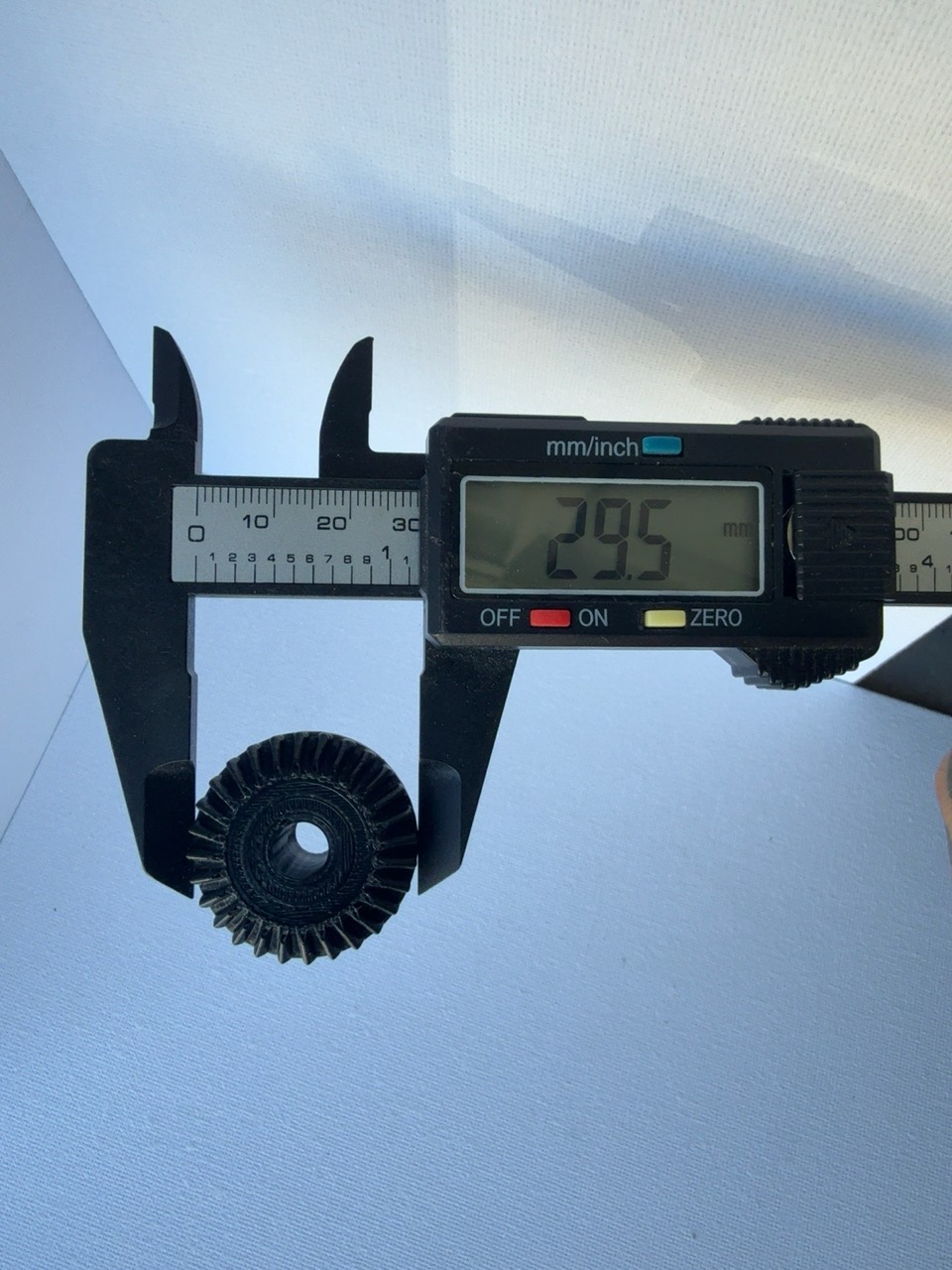

Printed gear only; reuse or separately source the required steel collet over the stem. Compare your original gear with the photographs. The sample caliper reads 29.5 mm at the shown outer contact points.

Product details

Replace a worn or cracked vertical drive gear in the vintage Bernina 500/600 sewing-machine mechanism. Compare the original gear tooth profile, bore, stem and mounting arrangement with the unedited product and measurement photographs.

This is a single black printed polymer gear. Retain the existing mating components and steel collet, which is required over the stem and is not included. Installation can require machine timing and alignment; check free rotation and engagement before operation.

What is included

One printed vertical drive gear. Steel collet, shaft, mating gear, sewing machine, tools and installation service are not included.

Part details

Independent replacement part from Jams Engineering. Brand names identify equipment compatibility.

Material: 3D printed polymer
Part reference: JE-BERNINA-500-600-VERTICAL-DRIVE-GEAR

Installation & compatibility

Disconnect the equipment from power and follow the manufacturer's service instructions. Keep the original mounting hardware and check that the replacement moves freely after fitting.

Send your model and original-part photos for help

Shipping & returns

US orders ship free by USPS standard shipping from California. Read shipping and return information.
